Damond Motorsports
Vacuum Block
Vacuum Block
SKU: DMVACBLOCKB
Need it ASAP? Check stock or lead times, please give us a call at 801-769-6929 or reach out to one of our sales reps!
Couldn't load pickup availability

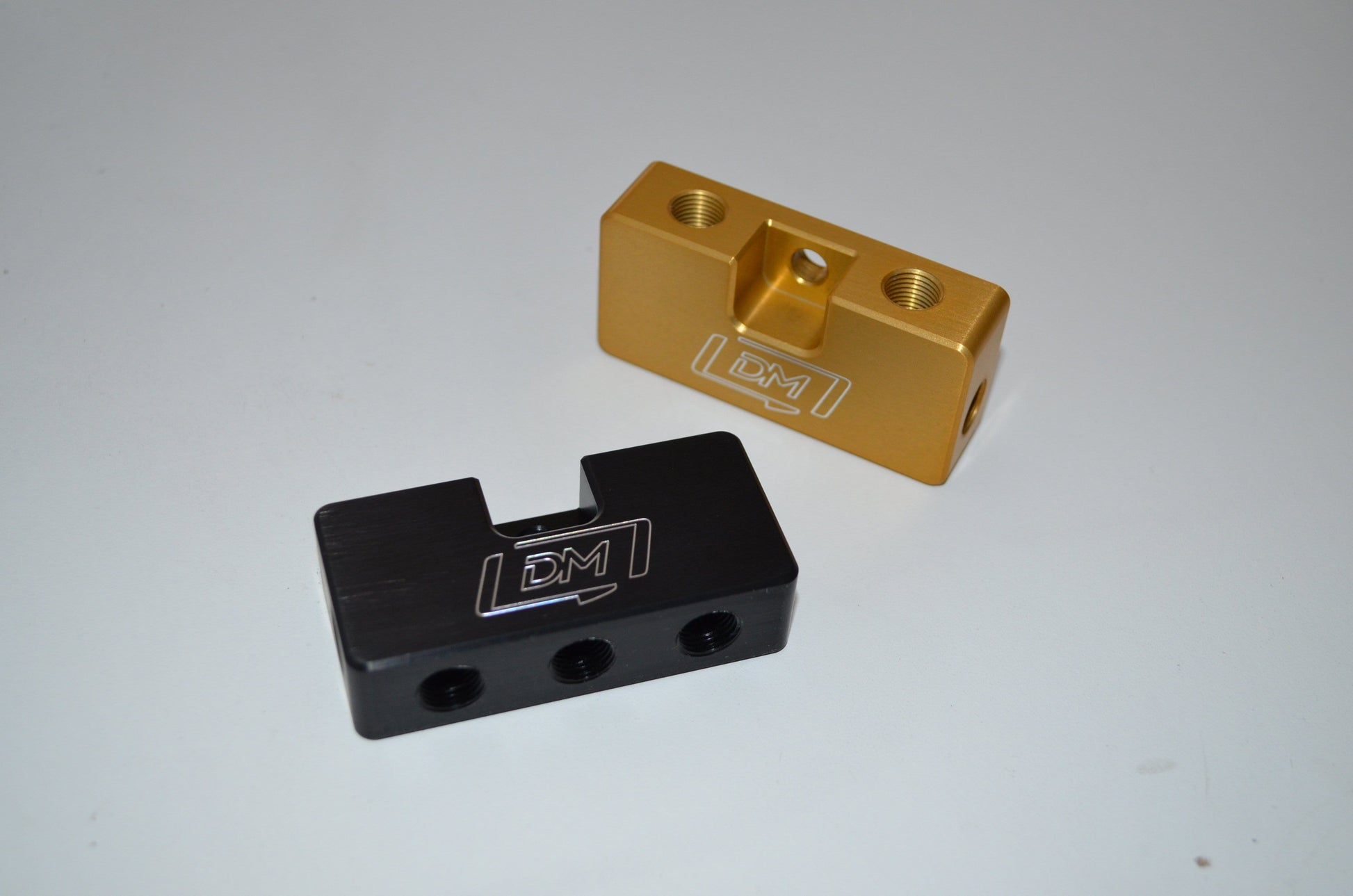

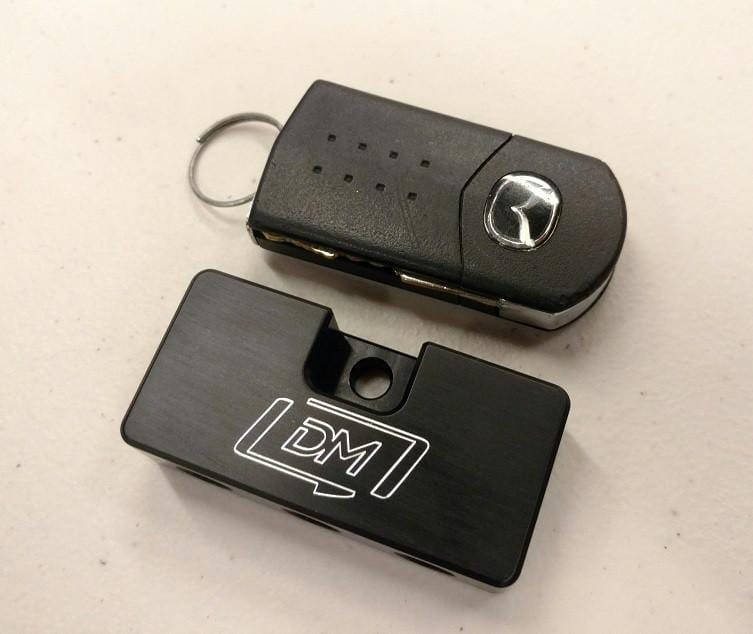

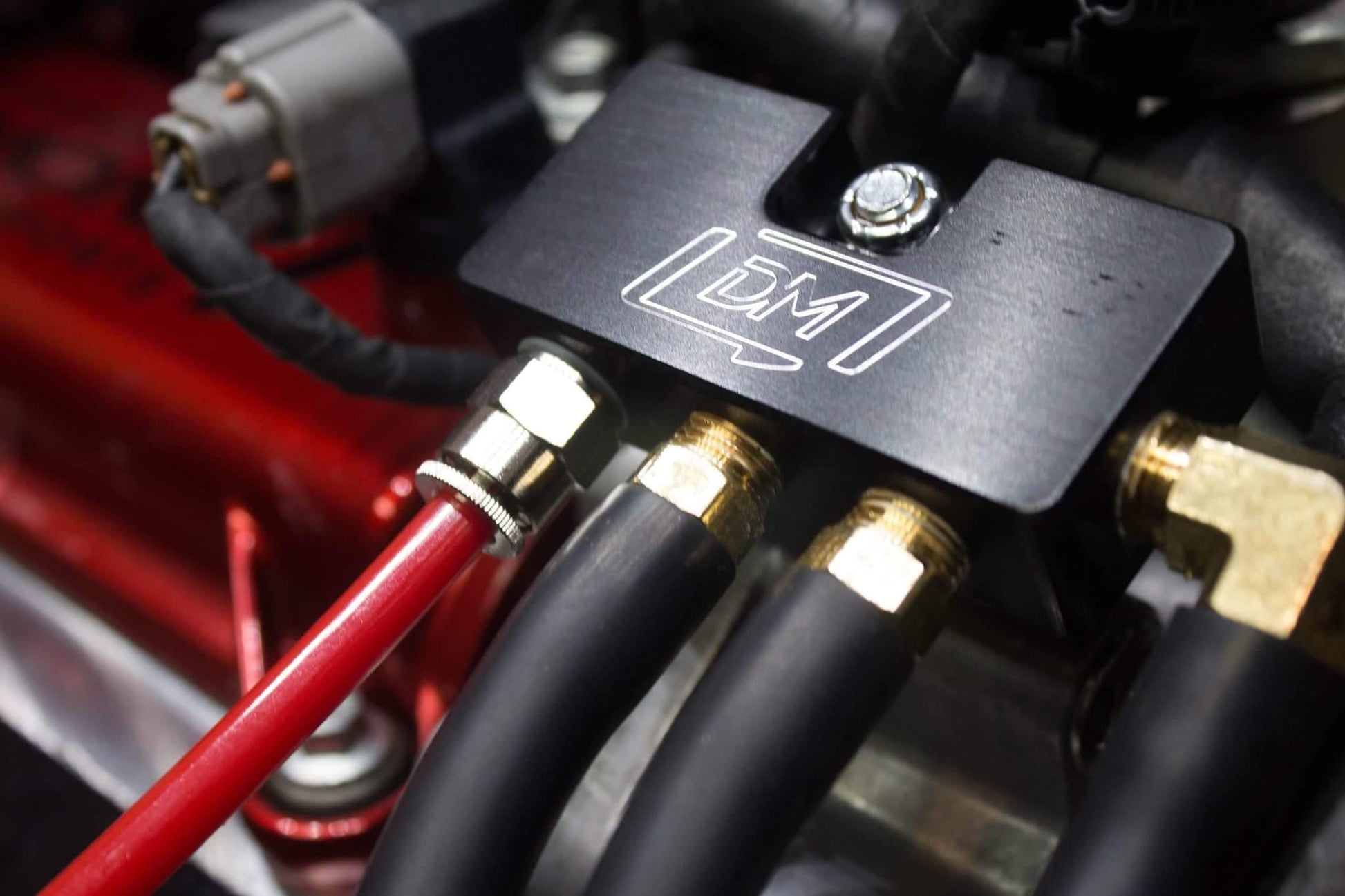

The Damond Motorsports Vacuum Block is your answer to declutter and organize your vacuum and boost sources into a more centralized location. We know space can be at a premium under the hood of a car. That's why we set out to get the most useable ports into the smallest volume, while providing flexibility for the limitless configurations you might set up your car. Starting as a chunk of billet, the vacuum block is machined down to a very compact size with 7 ports 1/8" NPT in size.
The block dimensions are: 2.60" x 1.25" x 0.70"

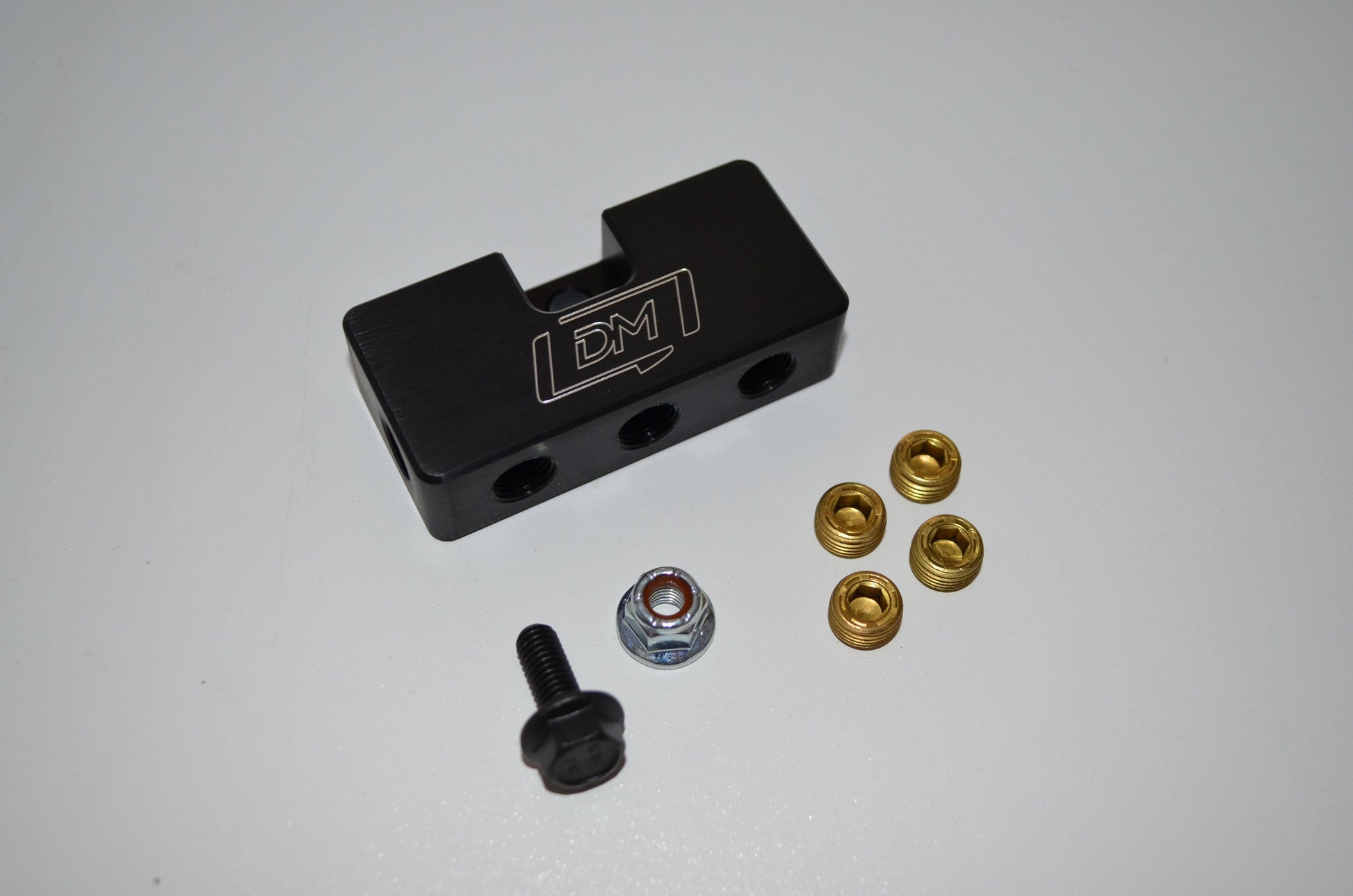

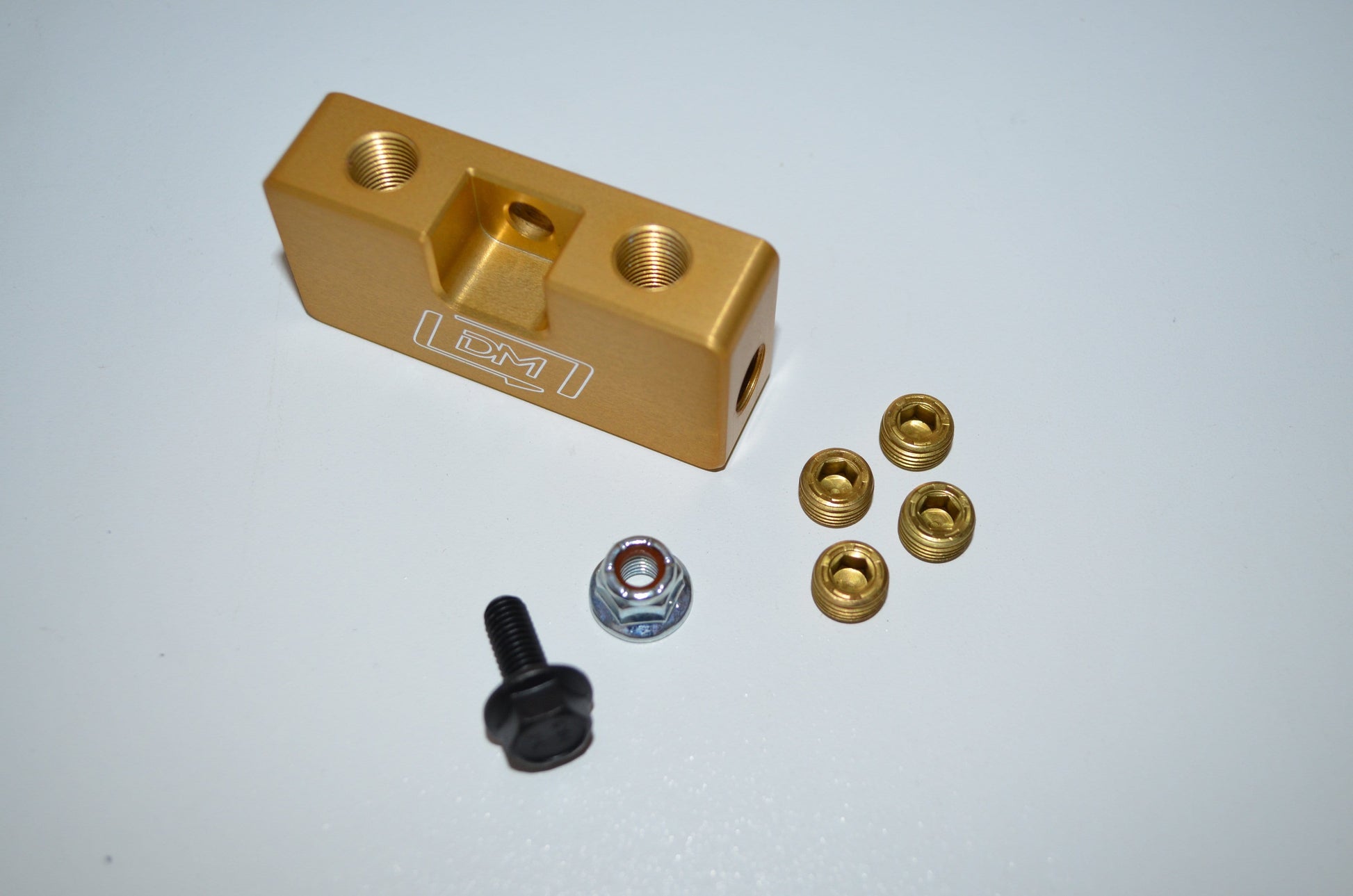

The Damond Motorsports Vacuum Block comes with 4 x 1/8" NPT plugs and an M6 bolt and nut for mounting. Additional fittings and tubing can be purchased below to complete your setup.
To purchase fittings, please visit: Fittings
To purchase hose and tubing, please visit: Hose & Tubing
