10th Gen Civic 1.5T Fuel Pump Install Kit (HDAX-FPIK)

Honda Civic X 1.5T Fuel Pump Install Kit (Hard Parts Only) by MAPerformance

In our time as part of the 10th Gen Civic SI community, we have found that this group loves to work on their car and make parts and systems with a bit of their own style involved.

We found that above 360hp the factory system was just having a hard time holding a constant pressure at the levels we were demanding, so this kit was born as a solution to fix that, along with supplying the fuel we would need for our Auxiliary port injection kit also. Since then we have been working on a complete fuel systems solution for the platform, and one of the things we get asked about most is upgrading the fuel pump and if we have any options.

Well, here it is. Our Civic X Fuel pump mount kit is the answer for those DIY guys out there looking to build their own system. We designed this around the Walbro 450 sized pumps as a drop-in design utilizing the factory basket. THIS KIT WILL GET RID OF YOUR FACTORY FUEL FILTER, FUEL PRESSURE REGULATOR, AND IN-TANK VENTURI so you will need to make sure you have a solution for all of those, as we do not recommend running the car without any of them. We will also have a complete solution available for those of you looking for a drop-in and go option.

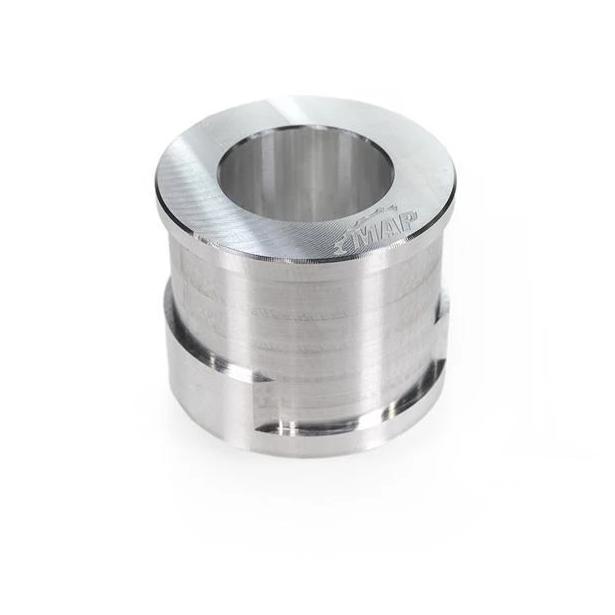

This kit here will include our in house designed Billet Fuel pump mount, that holds the pump in the optimal location utilizing factory hardware, and minimal tools needed for install. Along with the fuel pump strainer, fuel pump wiring, wiring bulkhead, and line to connect to the factory top hat. We do recommend that you hardwire the pump (Link to Deatschwerks Hardwire kit) as the 450 will overrun the factory wiring and fuse.

PLEASE NOTE: THIS KIT IS DESIGNED FOR THE DO IT YOURSELFERS THAT ARE LOOKING FOR A GOOD BASE TO START WITH, PLEASE DO NOT BUY THIS IF YOU ARE LOOKING FOR A SIMPLE DROP-IN SOLUTION.

Features

• Simple to install
• High-Quality materials compatible with all common pump fuels including E85
• No set screws that are prone to damage pumps
• Includes the hard to make parts for starting your fuel system

Benefits

• Larger pump capabilities for more fuel
• Minimal tools needed to install
• No chance of pump damage with install

Applications

• 2016+ Honda Civic X 1.5T
• 2017+ Honda Civic X Si

What's In The Box?

• 1 - MAP Civic X Billet Fuel Pump Sleeve
• 1 - Fuel Strainer
• 1 - Walbro Wire Harness
• 1 - MAP EVOX-FPK-HOSE
• 2 - Clamps
• 1 - Cord Grip Wire bulkhead

Warranty

• MAP Limited Lifetime Warranty On Billet Parts
• Manufacturer Warranty on Strainer
