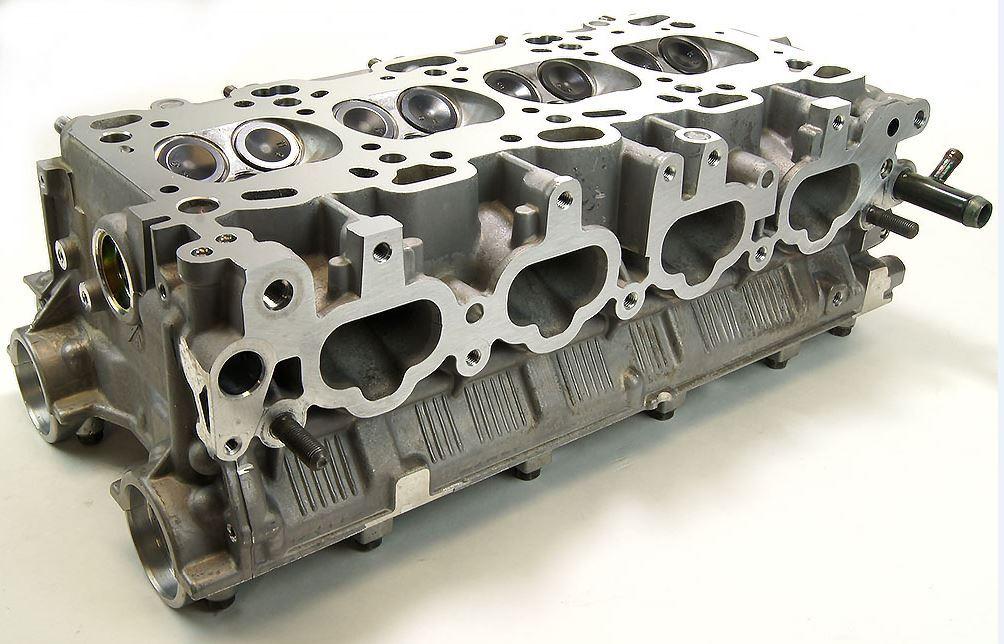

MAP Stage 1 Cylinder Head Preparation | 2003-2006 Mitsubishi Evo 8/9 4G63 (EVO-CHS-S1)

2003-2006 Mitsubishi Evo 8/9 Stage 1 Cylinder Head Preparation by MAPerformance

The MAP Stage 1 service is a great option for those looking to ensure that their cylinder head is in good working order and properly prepared for installation on a street or performance application. Please note there is no port work performed with this service.

This service requires you to send in your core

Included Services

• Clean / Hot Tank
• Visual Evaluation / Inspection
• Deck Resurface to High-Performance RA Specs
• Proprietary MAP 5 Angle Radius Valve Job
• Final Assembly
• Outbound Shipping

Included Valvetrain Components

• Kiggly Springs and Retainers
• Supertech Valve Seals
• Ferrea Valves
• Mitsubishi Valve Locks
• MAP Stud and Nut Kit

Why Choose MAP Machining Services?

• We utilize a Serdi seat and guide machine that provides us with some of the industry's finest valve jobs. We not only cut seats for the non-performance market but have also designed specific cutters that we use in all our modern 4-valve heads. Every head is also vacuum-checked after each seat is cut to ensure that no head leaves with a poor sealing valve. We would then typically set and adjust the installed valve tip height to our specs to ensure proper valve train geometry is maintained.
• We also have a resurfacing machine that provides a superior RA, or finishes, on both cast and aluminum blocks and heads, which is crucial for proper head gasket sealing in modern engines. Ours uses the CBN cutters and provides a superior finish to the older, multi-cutter systems that many shops still use.

Applications

• 2003-2006 Mitsubishi Evo 8/9

What's In The Box?

• 1 - Stage 1 Cylinder Head Service
