MAP Spec Stage 1 Cylinder Head Preparation | 2008-2015 Mitsubishi Evo X

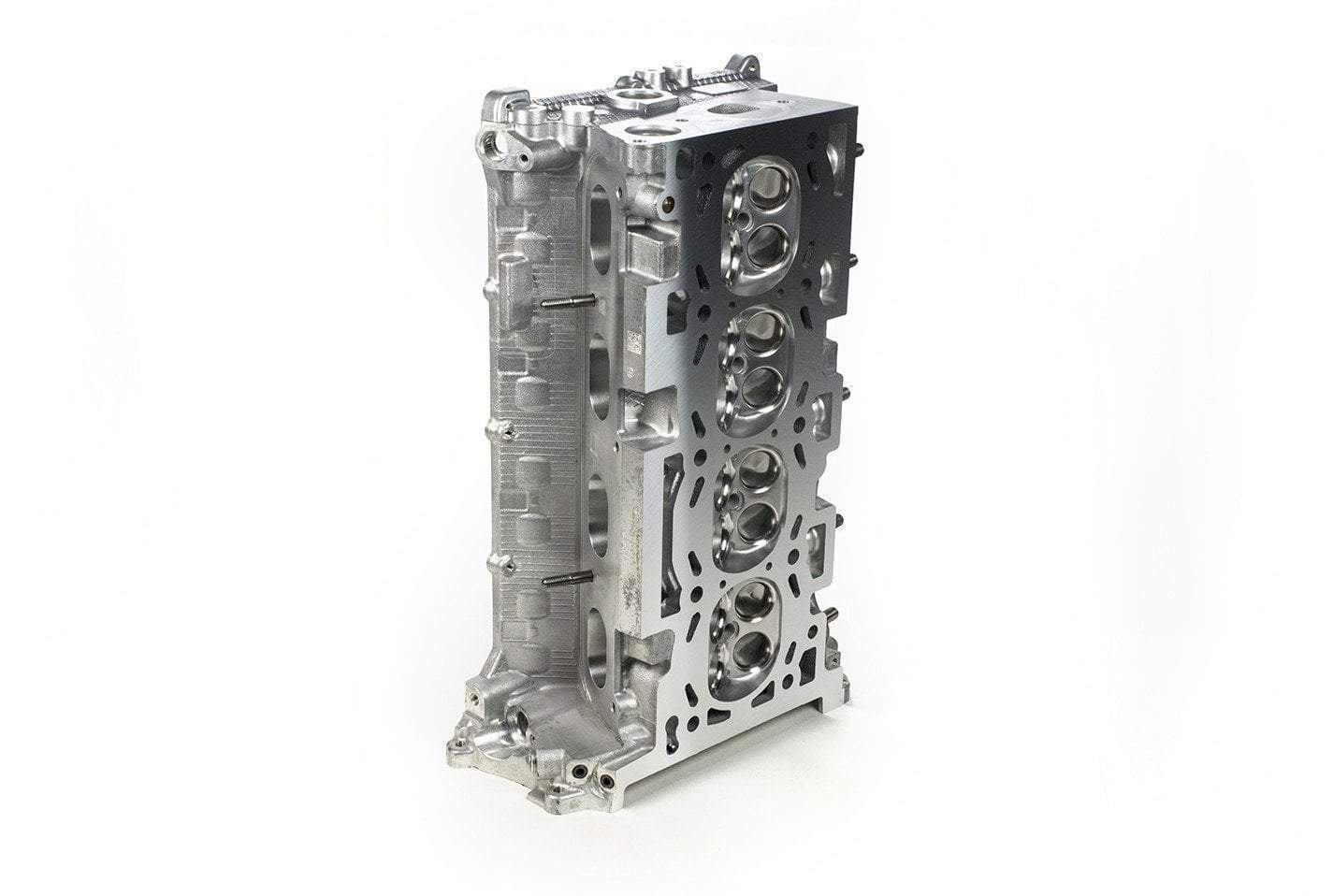

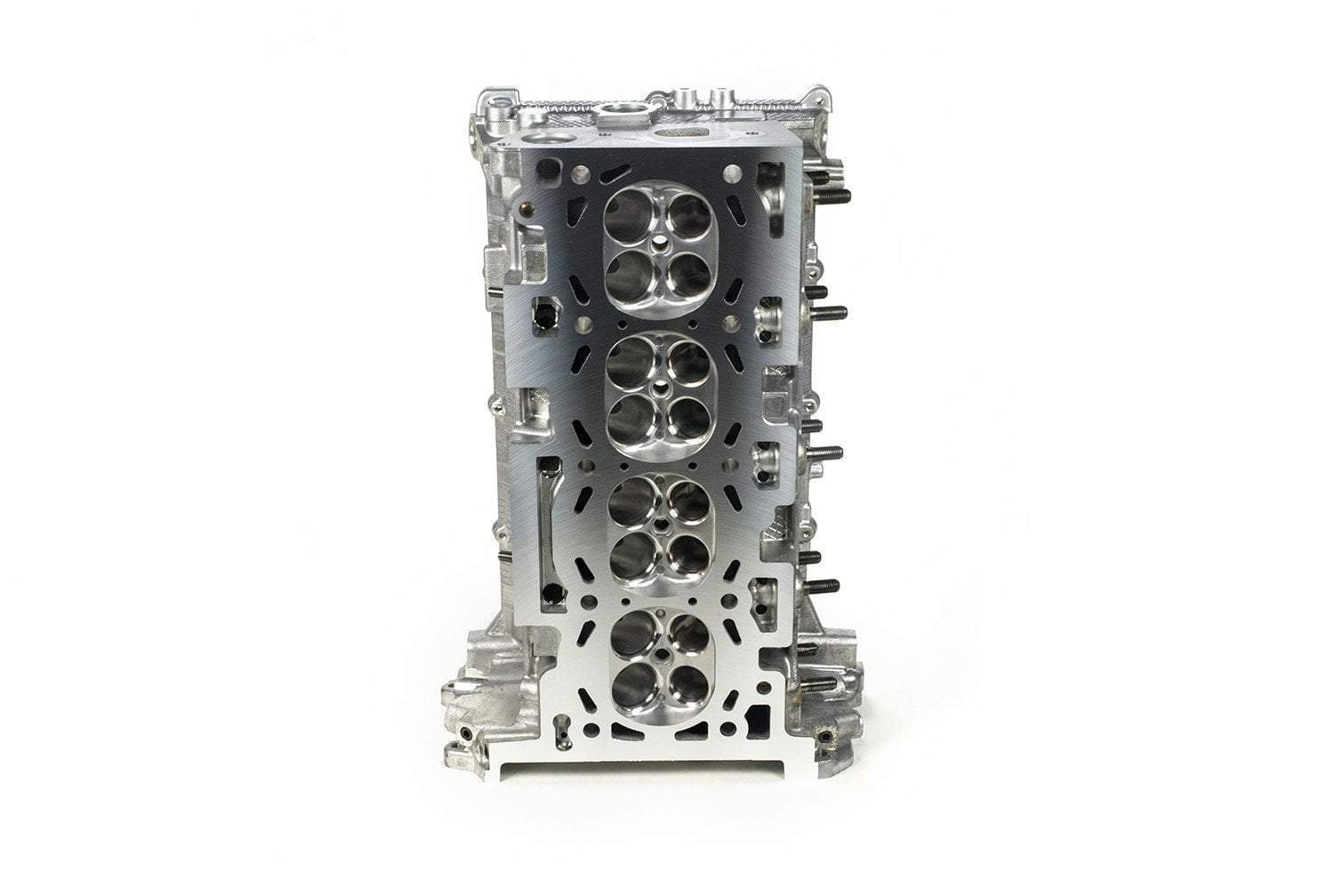

Stage 1 Cylinder Head Service - Evo X 4B11T

Features

• Core: MAP-supplied good used core
• Stage 1 cylinder head service
• Ferrea 6000 Standard Size valves
• GSC Power-Division valve seals (1010)
• Ferrea Valve guides
• GSC 5042 Beehive springs with titanium retainers
• New OEM valve locks (MN183955 x 32)
• *No Cams - Shimming/buckets needed depending on cam choice
  $380.00 Charge for shimming with customer supplied camshafts

Included Services

• Clean / Hot Tank
• Visual Evaluation / Inspection
• Deck Resurface to High Performance RA Specs
• Proprietary MAP 5 Angle Radius Valve Job
• MAP Stage 1 Service
• Final Assembly
• Outbound Shipping via Fedex Ground service

Applications

• 2008-2015 Mitsubishi Evo X

What's In The Box?

• Stage 1 Cylinder Head with Chosen Options

Why Choose MAP Machining Services?

We utilize a Serdi seat and guide machine that provides us with some of the industry's finest valve jobs. We not only cut seats for the non performance market, but have also designed specific cutters that we use in all our modern 4 valve heads. Every head is also vacuum checked after each seat is cut to ensure that no head leaves with a poor sealing valve. We would then typically set and adjust the installed valve tip height to our specs to ensure proper valve train geometry is maintained.

We also have a resurfacing machine that provides a superior RA, or finish, on both cast and aluminum blocks and heads, which is crucial for proper head gasket sealing in modern engines. Ours uses the CBN cutters and provides a superior finish to the older, multi-cutter systems that many shops still use.

Warranty

• No Warranty
