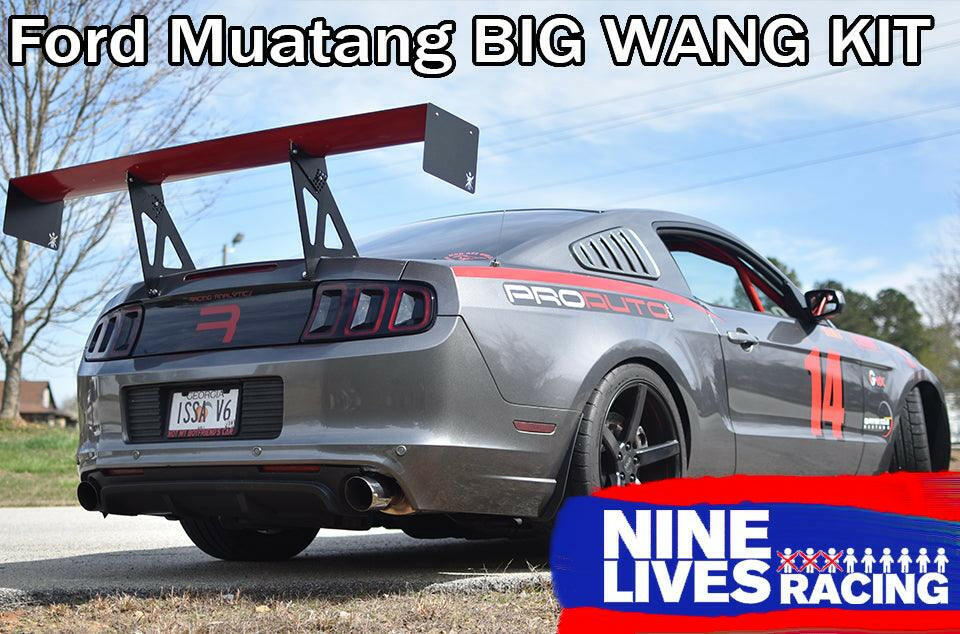

• A grey Ford Mustang with a large rear wing and race decals, including the number 14, is parked outdoors. A banner at the top reads "Mustang Big Wang Kit '10-14 S197 II," and the bottom right has a "9livesracing" logo.

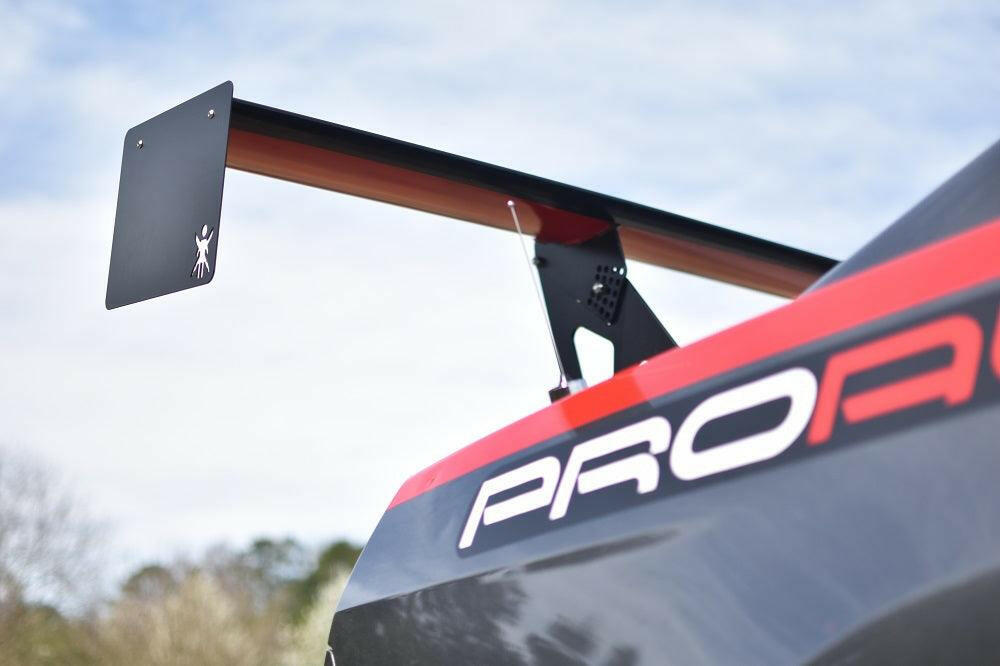

  • Close-up of the rear wing, specifically the Mustang Big Wang Kit '10-14 S197 II by 9livesracing, featuring an extruded aluminum performance airfoil, on a black and red sports car with the word "PROA" partially visible on the side, set against a blurred background of trees and a cloudy sky.

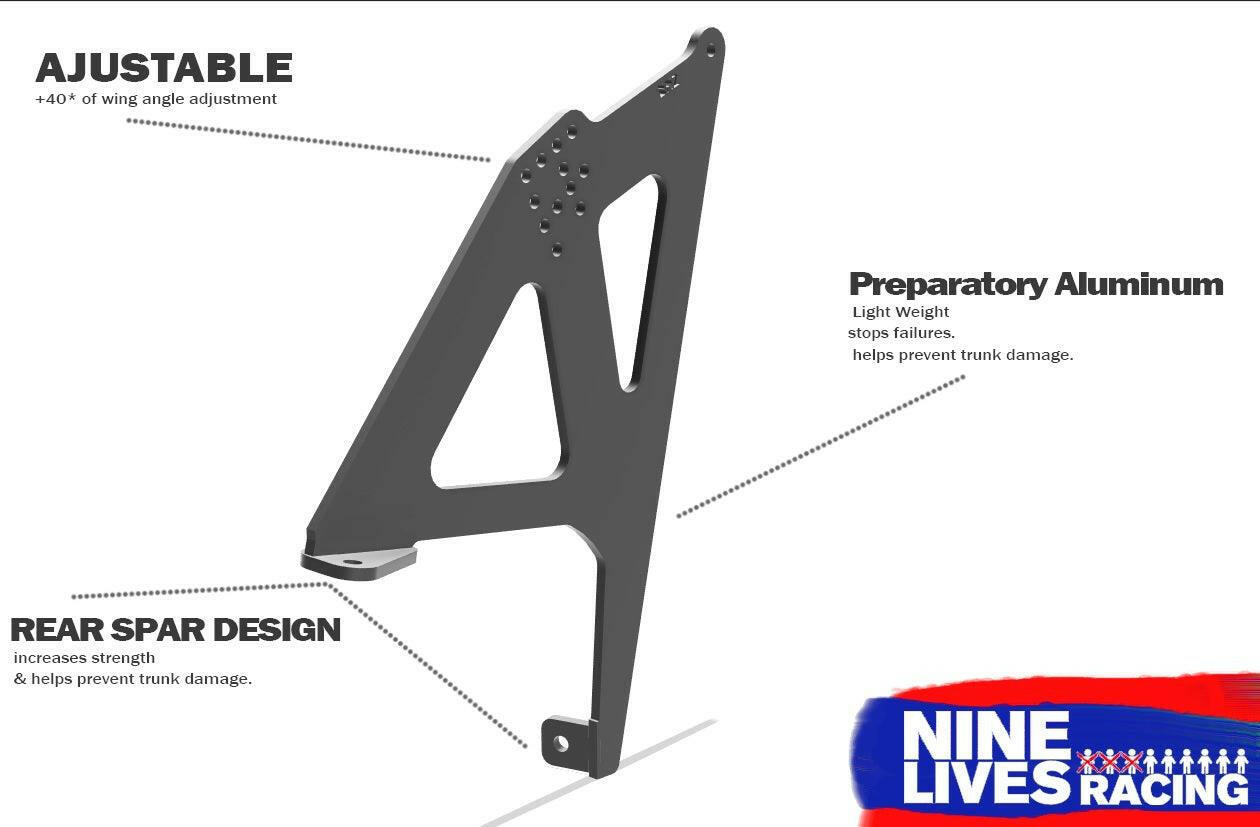

  • An illustration of the Mustang Big Wang Kit '10-14 S197 II from 9livesracing. The image highlights three features: adjustable wing angle (+/-0°) for downforce adjustment, lightweight preparatory aluminum, and a rear spar design for added strength and trunk protection. The 9livesracing logo is at the bottom right.

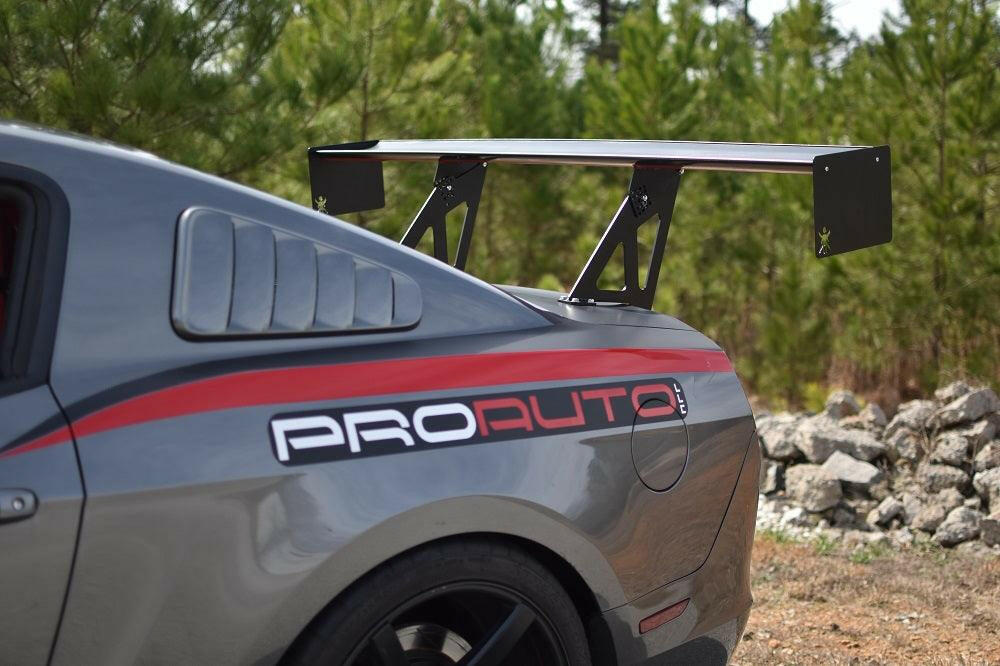

  • Close-up of a gray sports car's rear, featuring the 9livesracing Mustang Big Wang Kit '10-14 S197 II with adjustable downforce, black alloy wheels, and a "PROAUTO" decal on the side. The background shows green trees and a rocky area.
  • A sleek gray sports car with a large rear wing and black alloy wheels is parked on a road. Equipped with the Mustang Big Wang Kit '10-14 S197 II by 9livesracing, which includes extruded aluminum wings for downforce adjustment, it prominently features a racing number "14" on the side and the text "PROAUTO" on the rear window. Trees and a house can be seen in the background under a partly cloudy sky.

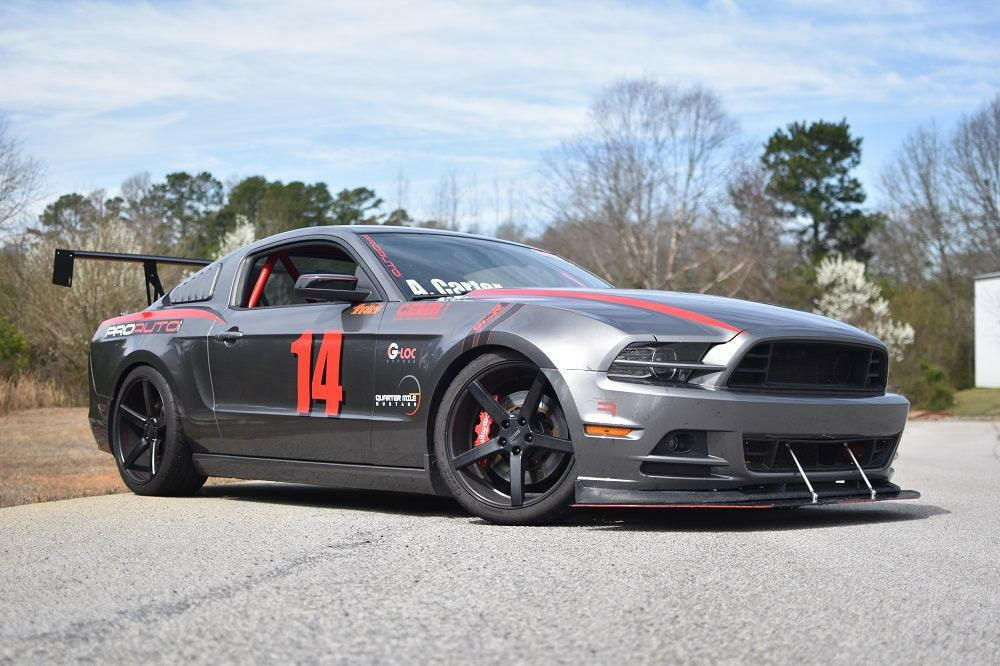

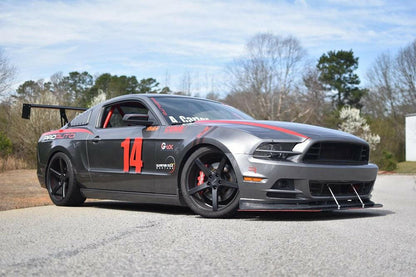

  • A gray Mustang Big Wang Kit '10-14 S197 II, proudly displaying the number 14 in red on its side, is parked on a road. This car from 9livesracing boasts various decals, black rims, and a prominent front splitter with an extruded aluminum wing designed for optimal downforce adjustment. In the background, trees and a patch of blue sky with some clouds can be seen.

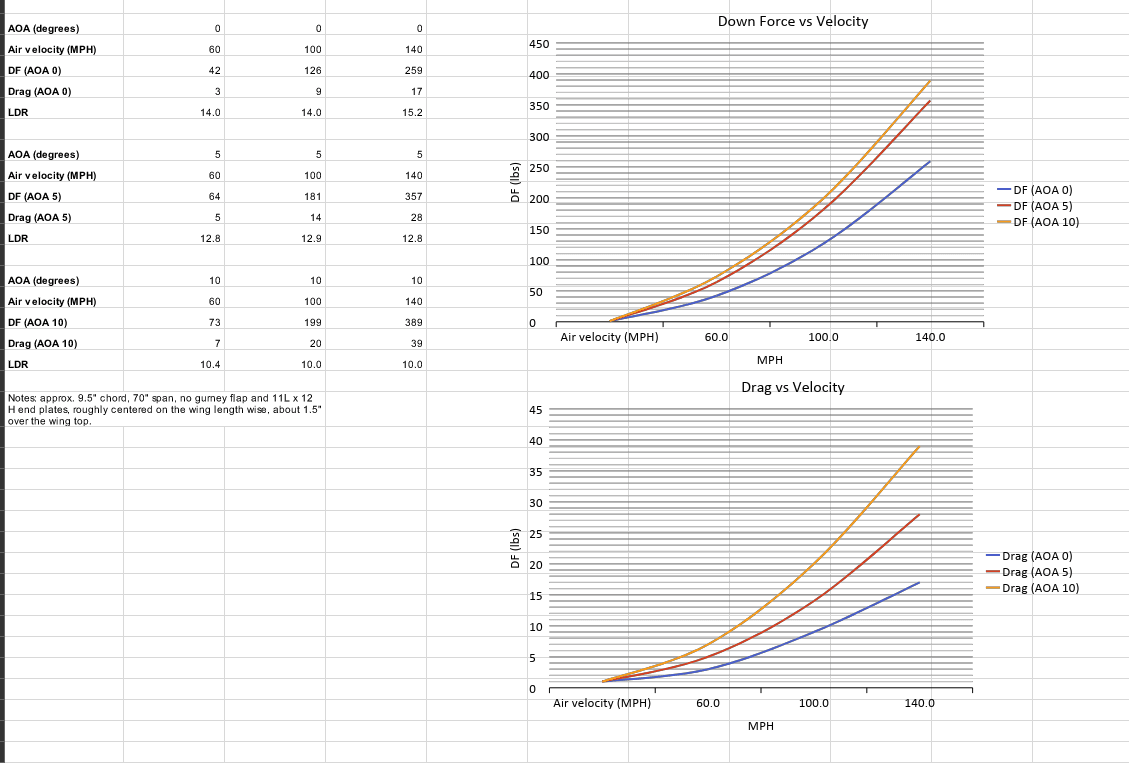

  • The Mustang Big Wang Kit '10-14 S197 II by 9livesracing includes a comprehensive spreadsheet that features detailed data tables and graphs. The tables list air velocity (MPH) alongside various aerodynamic properties such as Angle of Attack (AOA) in degrees, up force, drag, and the lift-to-drag (L/D) ratio. Additionally, the graphs illustrate Down Force and Drag versus Velocity, providing insight into how these variables fluctuate with changes in air velocity for high-performance airfoil analysis.

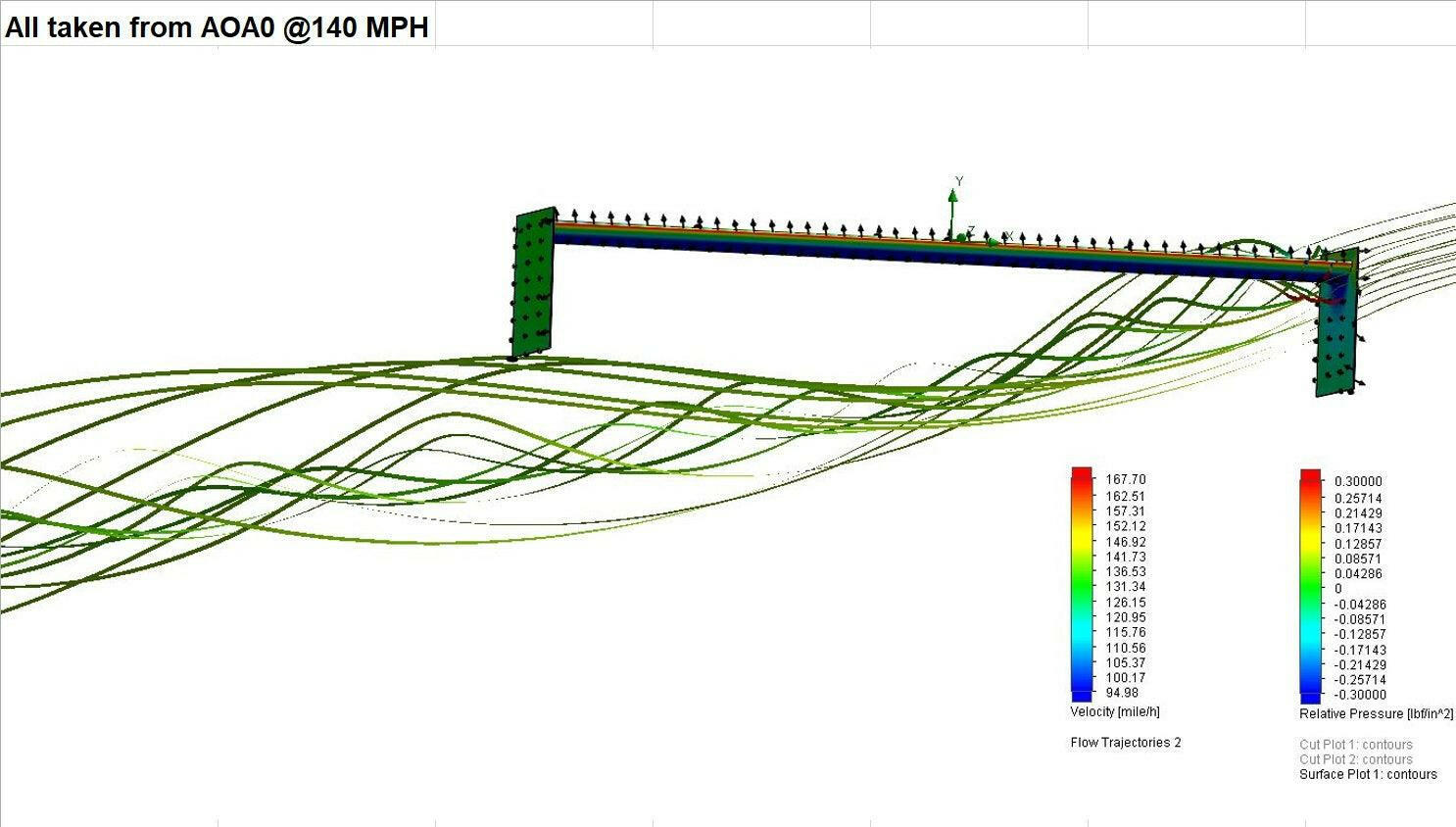

  • A CFD simulation of the Mustang Big Wang Kit '10-14 S197 II by 9livesracing showcases airflow around a structure at 140 MPH, illustrating streamlines that depict airflow patterns. Colors represent velocity and pressure distribution, with color legends for velocity (in mph) and relative pressure visible on the right, underscoring the performance airfoil effectiveness.

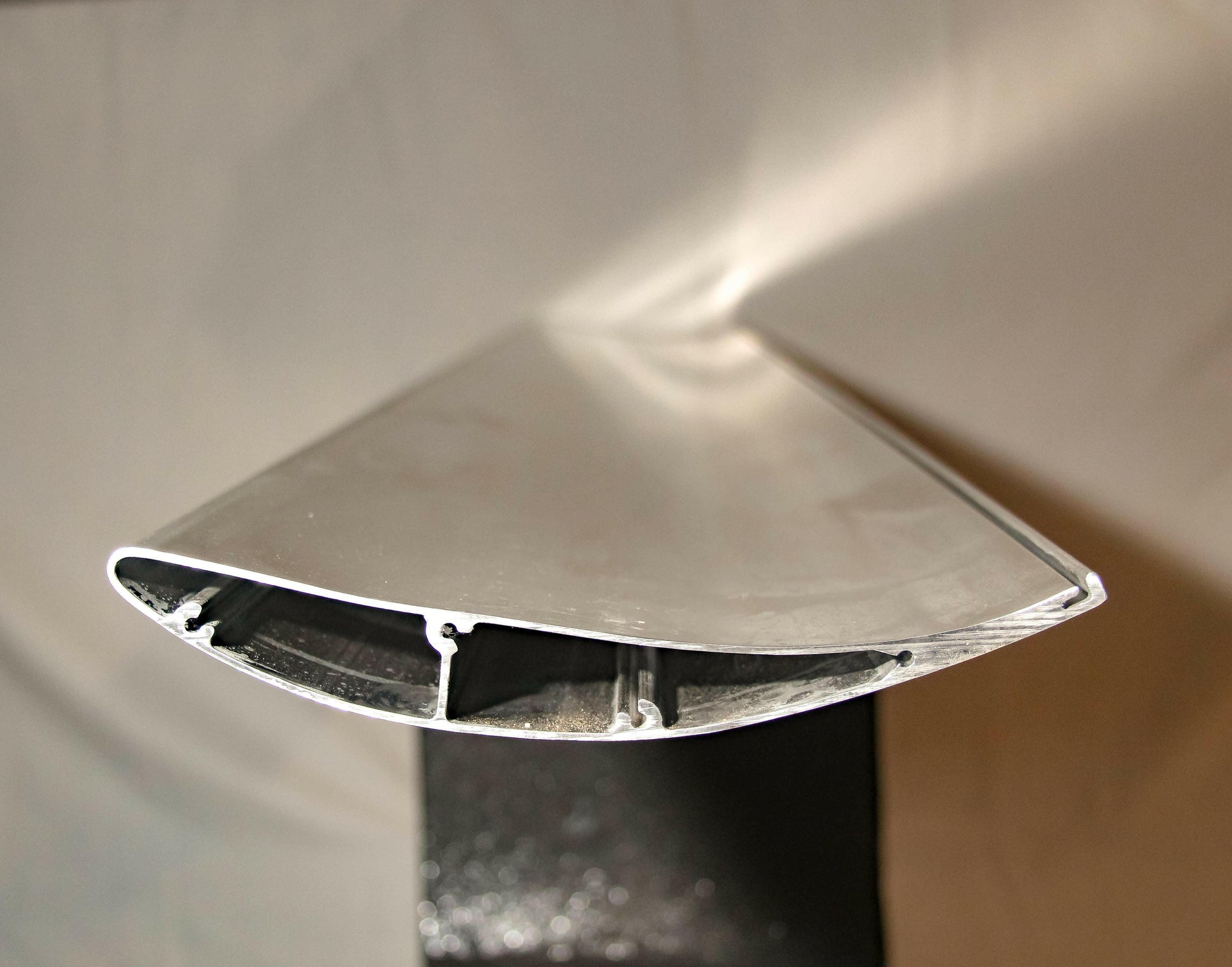

  • Close-up view of the Mustang Big Wang Kit '10-14 S197 II cross-section mounted on a black stand. The interior structure of the extruded aluminum wings is visible, showcasing its aerodynamic and lightweight design by 9livesracing. The background is a plain, muted color, emphasizing the details of the wing's construction and downforce adjustment features.

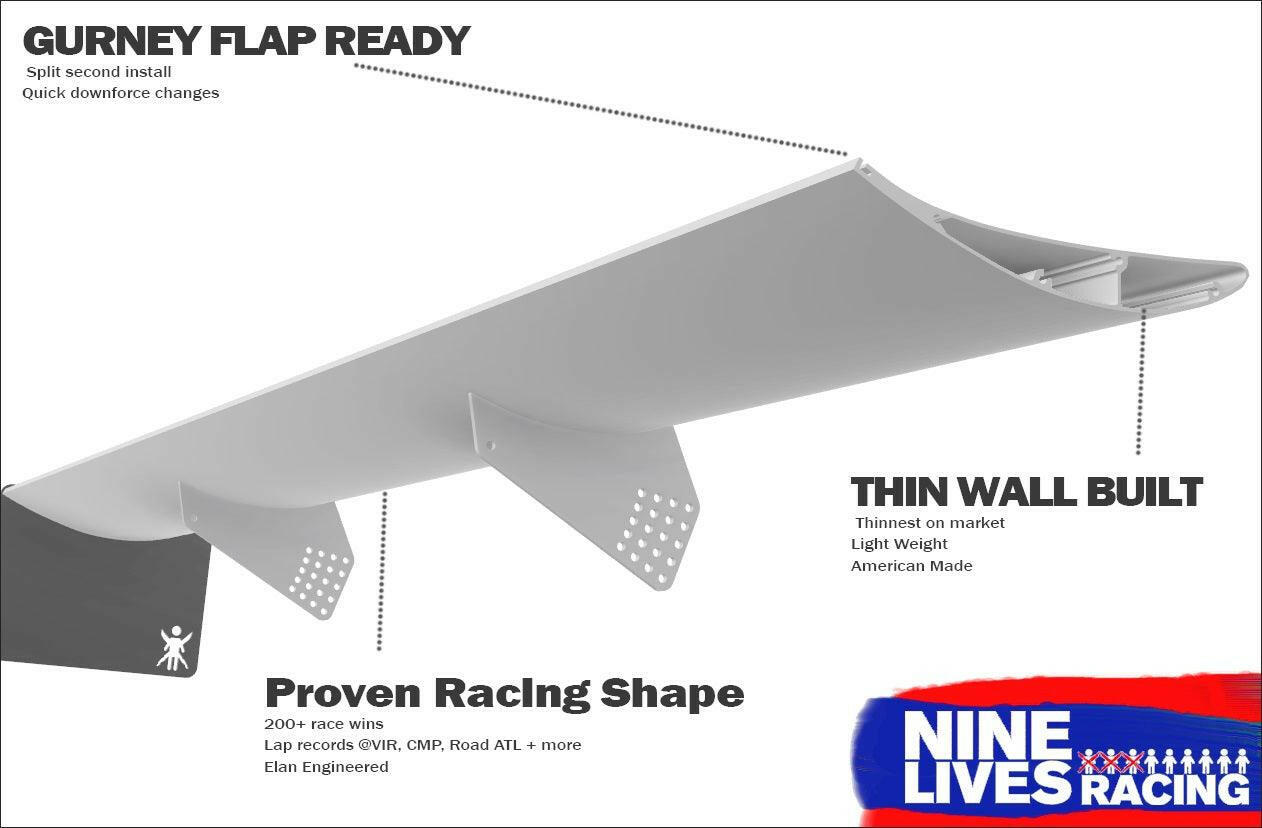

  • An image of a spoiler specifically designed for the Mustang Big Wang Kit '10-14 S197 II with multiple features highlighted. Text indicates it is "Gurney Flap Ready," "Thin Wall Built," and has a "Proven Racing Shape" for optimal downforce adjustment. The 9livesracing logo is at the bottom right corner.

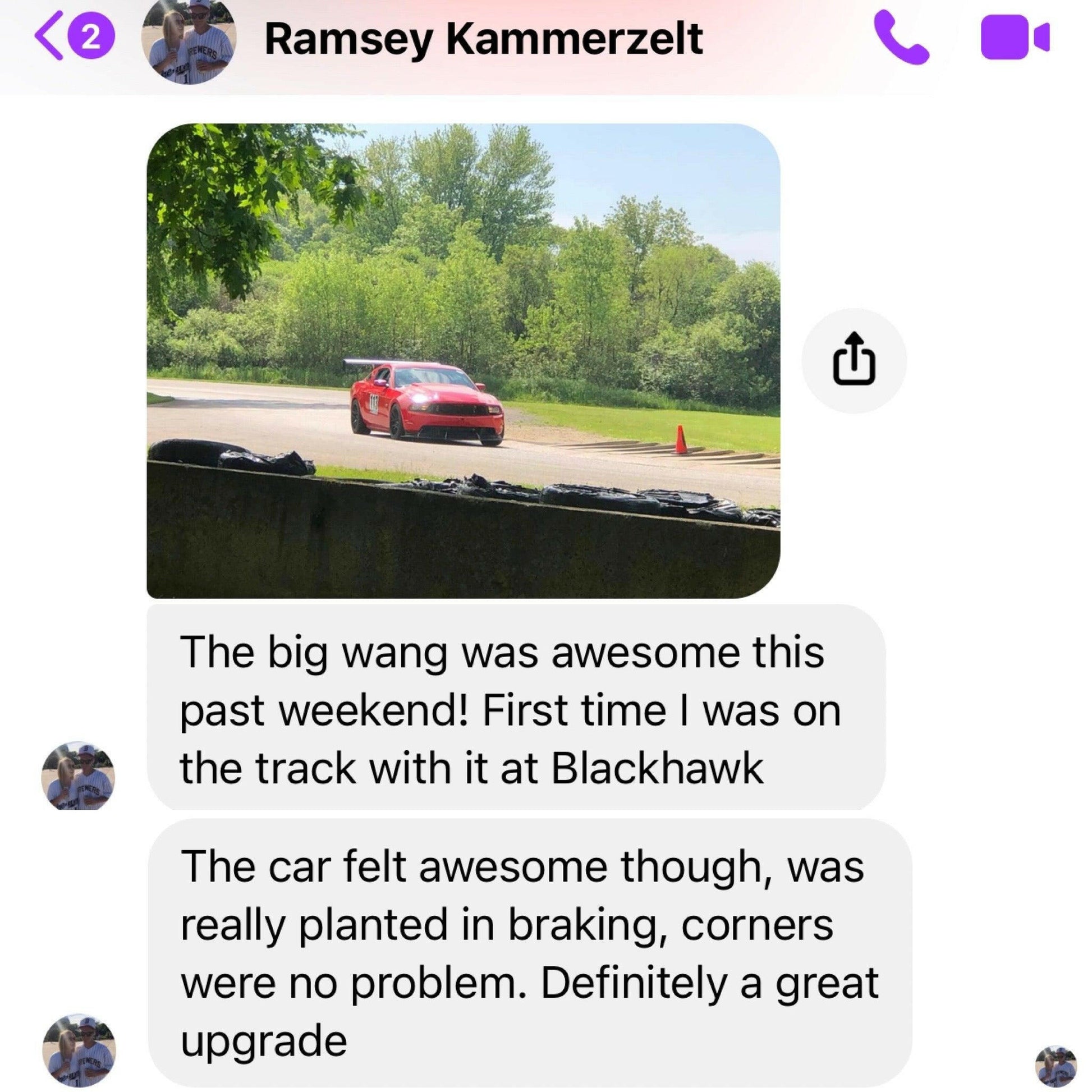

  • A screenshot of a Facebook Messenger conversation with a person named Ramsey Kammerzelt. The image shows a red sports car on a race track. The text below reads: "The Mustang Big Wang Kit '10-14 S197 II from 9livesracing was awesome this past weekend! It was my first time on the track with it at Blackhawk. With the downforce adjustment, the car felt planted in braking; corners were no problem. Definitely a great upgrade.

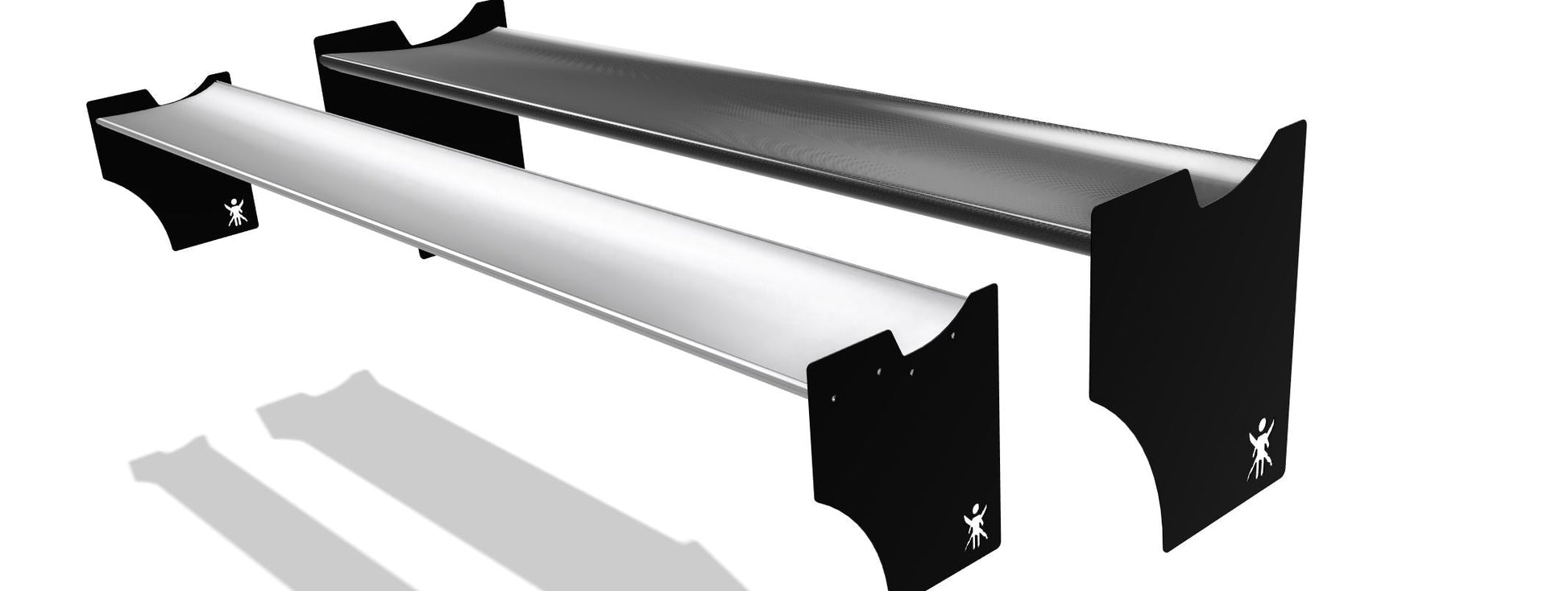

  • Image of two contoured benches from the Mustang Big Wang Kit '10-14 S197 II by 9livesracing, one white and one black, with sleek surfaces and matching black side supports featuring a small logo of a human figure. Evoking the aesthetics of extruded aluminum wings, both benches cast linear shadows on a white background.
  • Two sleek, minimalist black Mustang Big Wang Kit '10-14 S197 II snowboard bindings from 9livesracing are shown on a white background. The bindings feature a subtle, stylized figure logo near the base and boast extruded aluminum wings for enhanced durability.

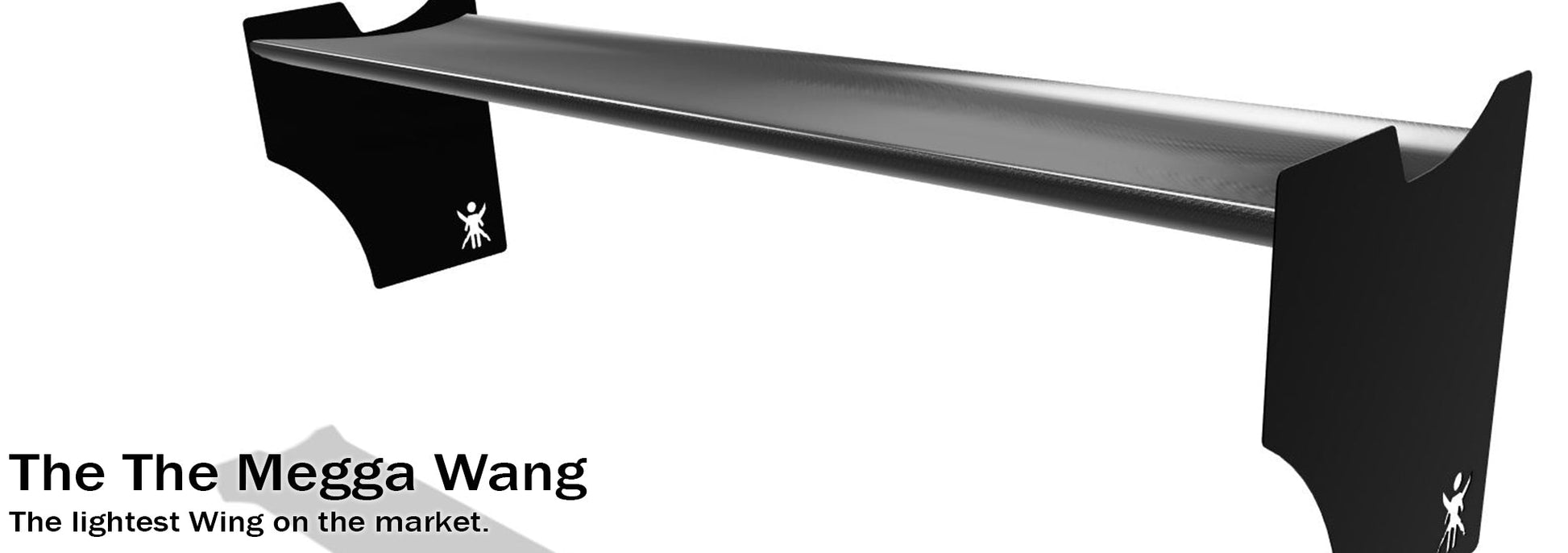

  • The Mustang Big Wang Kit '10-14 S197 II by 9livesracing features a carbon fiber car wing with black end plates, one adorned with a white logo. The text reads, "The Mustang Big Wang Kit - The lightest and most adjustable wing on the market, combining performance airfoil design with downforce adjustment for superior performance.
1 15

9livesracing

Mustang Big Wang Kit '10-14 S197 II

Mustang Big Wang Kit '10-14 S197 II

SKU: 71/28/s197

Need it ASAP? Check stock or lead times, please give us a call at 801-769-6929 or reach out to one of our sales reps!

$1,118.64 USD
$1,118.64 USD
Sale Sold out
  Lease to own   Pay as low as   $/week
Wáng Material

Get that big Wang GT3 performance!  The Big Wang is here! These Airfoils can produce incredible levels of down-force without killing top speed. Exactly what racers are after. Extruded aluminum wings are developed, patented, and built for a prototype project. Nine Lives Racing Takes the raw material and makes them readily available to the public as a working part. Best wing in class. 15.2:1 Lift to drag ratio, nothing else comes close. A built-in gurney flap relief for down-force adjustments in seconds.

  • Light Aluminum construction.
    • 0.2lbs per inch
  • Gurney flap ready
  • Up to 15.2:1 Lift Drag ratio*
  • low drag = more top speed!
  • American made
  • Track Tested

What's included

  • Wing sized to your car
  • NLR “basic” End plates 10"x8"
  • Stainless Steel hardware

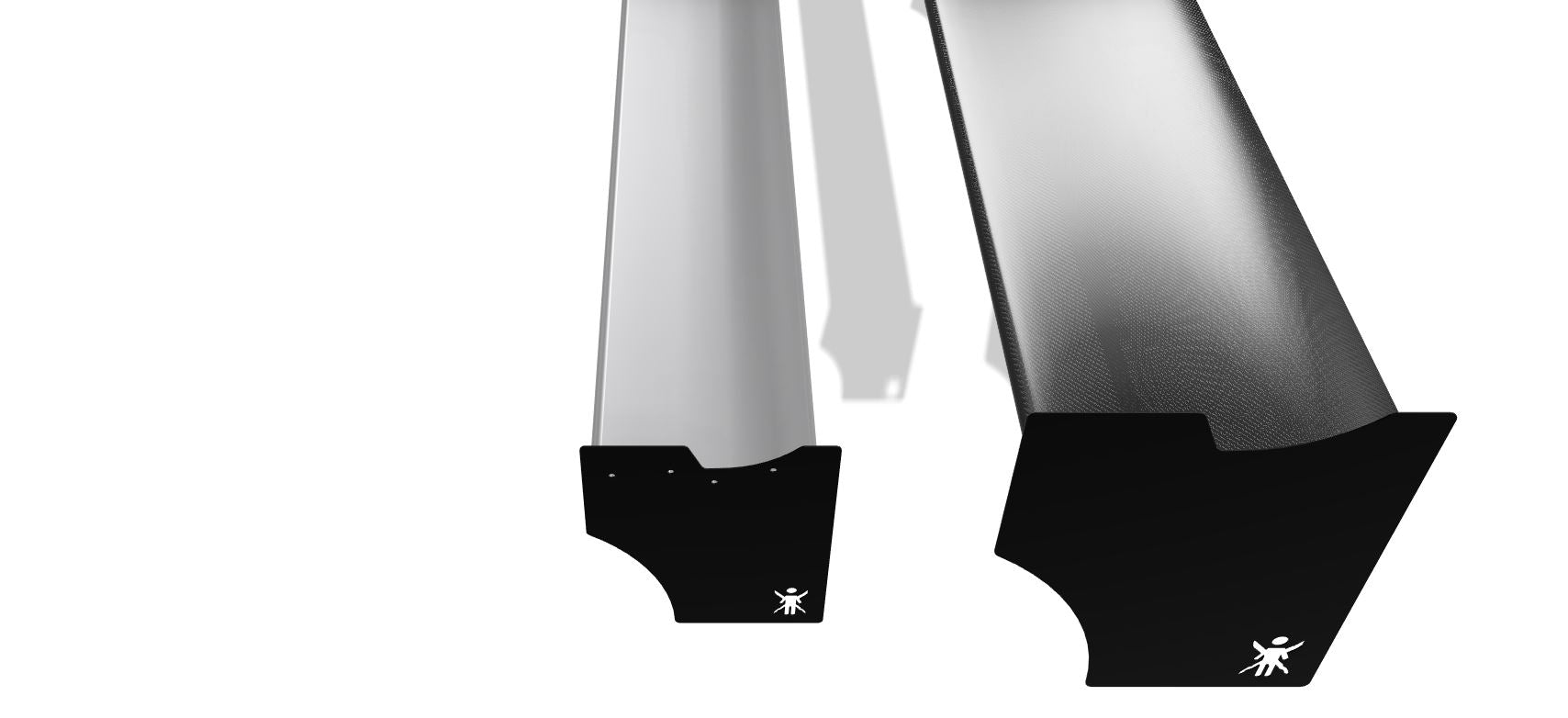

Upgrade end-plates To MEGA end-plates

  • 12"x10.75" huge end-plates
  • Increases downforce by 10%
  • DECREASES drag by 7%!!
  • NASA legal
  • AOA adjustment.





Warranty/Returns/Lead times

Click here for current shipping estimates for new orders. All items are built to order.

Powder coat or vinyl "wáng skin" upgrades are strongly recommended. Otherwise, wings are shipped raw, and while aluminum does not corrode the same way ferrous metals do, your wing will get progressively uglier as it is exposed to the elements.

Wángs and Mega Wings are covered by the Wang Guarantee.  Splitters, Sturdy Boiis, and air dams, based upon the nature of the use (and proximity to the earth), carry no warranty and are non-refundable. If you bolt these items to the car you own 'em.

*Open air testing numbers available at https://9livesracing.com/cfd-testing
